Description
Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.
Intruduction
1. Materials: hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).
2. Zinc coating : 225-275g/m2.
3. Tensile strength between 380N/mm2 -- 500N/mm2.
4. Elongation≥ 12%.
5.Wire Diameter:2.4-3.5mm
6.Mesh Size: 50x70mm, 50x100mm, 80x100mm or according to customers’ requirements.
7.Box Size:0.5x0.5x1m, 1x1x1m, 1x1x2m, 1x1x3m, 1x1x4m, 2x1x0.5m, 4x1x0.5m.
Specification
1. Wire Diameter
| Mesh Wire(mm) | Selvedge Wire(mm) | Binding Wire(mm) |
| 2.0 | 2.4 | 2.2 |
| 2.2 | 2.7 | 2.2 |
| 2.4 | 3.0 | 2.2 |
| 2.7 | 3.4 | 2.2 |
| 2.75 | 3.4 | 2.2 |
| 3.0 | 3.9 | 2.2 |
| 3.4 | 4.4 | 2.2 |
2. Mesh Size
| Size(mm) |  |
| 60x80 |
| 80x100 |
| 100x120 |
| 110x150 |
| 220x240 |
Features&Advantages
(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;
(2) the construction is simple and does not need special technology;
(3) Strong ability to resist natural damage, corrosion and adverse weather effects;
(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.
(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance,
(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.
Application
Gabion Wire mesh can use in civil engineering, road building, and military applications.
The mesh is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate the assembly and installation.
a. Control and guide of water or flood
b. Flood bank or guiding bank
c. Preventing of rock breaking
d. Water and soil protection
e. Bridge protection
f. Strengthening structure of soil
g. Protection engineering of seaside area

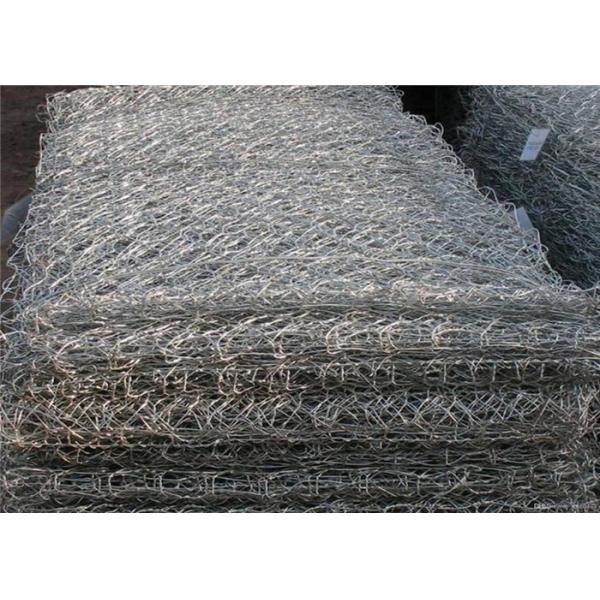

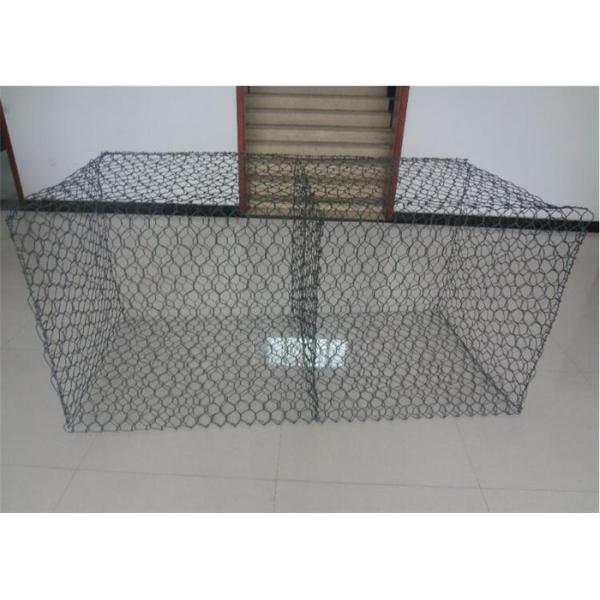

Product Show
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
