Product Description:
Gabion Basket Gabion basket is a multi-purpose material structure, known by many different names, such as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, and so on. It has become increasingly popular in recent years for various engineering projects, such as traffic, water conservancy, municipal, gardens, soil and water conservation.
Gabion mesh is made of corrosion-resistant steel wire or thin alloy coated steel wire with 5-10% carbon, twisted and hexagonal ourselves by the wire machine. The length of the double hinge part should not be less than 5cm to protect the steel wire’s coating. The specific details of the wire used can be found in the industry standard YB/T4221-2010.

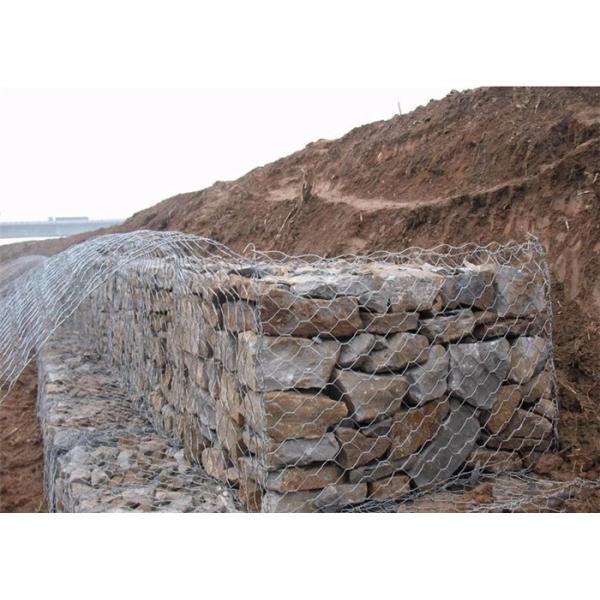

The gabion mesh can be assembled into structures according to engineering design requirements, and filled with blocks and stones for stability. This new technology is usually used for embankment and roadbed protection.
| Gabion Box 2m x 1m x 1m,3m x 1m x 1m,4m x 1m x 1m, |
Mesh Size
(mm) | Number of Diaphragm | Approximate dimensions and Volumes | Tolerance | Color | Wire diameter
(mm) |
Length
(m) | Width
(m) | Height
(m) | Capacity
(m³) |
80x100
80x120
100x120
120x150 | 1 | 2.00 | 1.00 | 0.30 | 0.60 | Length±5%
Width±5%
Height±5% | Blue
RedGreen
Black | 2.0-4.0 |
| 1 | 2.00 | 1.00 | 0.50 | 1.00 |
| 1 | 2.00 | 1.00 | 1.00 | 2.00 |
| 2 | 3.00 | 1.00 | 0.30 | 0.90 |
| 2 | 3.00 | 1.00 | 0.50 | 1.50 |
| 2 | 3.00 | 1.00 | 1.00 | 3.00 |
| 3 | 4.00 | 1.00 | 0.30 | 1.20 |
| 3 | 4.00 | 1.00 | 0.50 | 2.00 |
| 3 | 4.00 | 1.00 | 1.00 | 4.00 |
| 1 | 2.00 | 0.50 | 0.50 | 0.50 |
| 2 | 3.00 | 0.50 | 0.50 | 0.75 |
| Note: other size can be produced according to customer's request |
Features:
1.Economic. Just fill the stone into the gabions and seal it.
2.Simple installation. No special technology needed.
3.Weather proof under natural destroy, corrosion resistant.
4.No collapse even under big scope of deforming.
5.Good permeation can prevent the damage by hydrostatic.
6.Less transport freight. It can be fold together for transport.
7.Sludge in the stones is good for plant growing.
Technical Parameters:
Material used: low carbur steel wire.
Specification: 2X1X1 3X1X1 4X1X1 and customizable (M).
The weaving technology used is Twist Knitting, with the mesh ranging from a quarter to eight.
The wire diameters used range from 1.5 mm to 5.0 mm.
The apertures available are 60*80, 100*120, 120*150 and 160*180.
The product originates from Anping, Hebei.
The product has various USES, such as coastal defense engineering, river protection, garden landscape, etc.
The surface treatment process used is plastic-coated PVC.
Applications:
a. Control and guide of water or flood
b. Flood bank or guiding bank
c. Preventing of rock breaking
d. Water and soil protection
e. Bridge protection
f. Strengthening structure of soil
g. Protection engineering of seaside area
Support and Services:
Gabion Wire Mesh Technical Support & Service
We provide comprehensive technical support and services for our Gabion Wire Mesh products. Our team of experienced professionals are available to assist with product selection, installation, and troubleshooting.
We offer a variety of services to ensure that you get the best performance from your Gabion Wire Mesh products, including:
- On-site installation and configuration
- Remote troubleshooting and technical support
- Regular maintenance and repair
- Training and education
If you have any questions or need assistance, please contact us and we will be happy to help.
FAQ:
- Q: What is Gabion Wire Mesh?
- A: Gabion Wire Mesh is a wire mesh container of steel wire, which is filled with stones to form a structure used in civil engineering, road building, military applications and architectural purposes.
- Q: What is the Brand Name of Gabion Wire Mesh?
- A: The Brand Name of Gabion Wire Mesh is Yuanhai.
- Q: What is the Model Number of Gabion Wire Mesh?
- A: The Model Number of Gabion Wire Mesh is YH-08.
- Q: Where is the Gabion Wire Mesh produced?
- A: Gabion Wire Mesh is produced in Hebei Province, China.
- Q: What is the Certification of Gabion Wire Mesh?
- A: The Certification of Gabion Wire Mesh is ISO9001:2015.
